POKERDOME

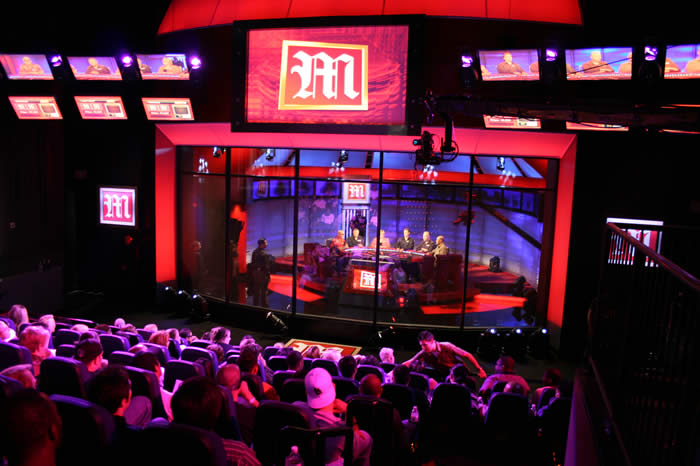

26 cameras cover a 6 player table. The audience can see in and knows what the players have for cards and their heart rate but the players can not see out. A jib and a handheld cover the audience. 12 -- 46"LCDs are used for iso monitors and card data and a Barco R9+ projects the center image.

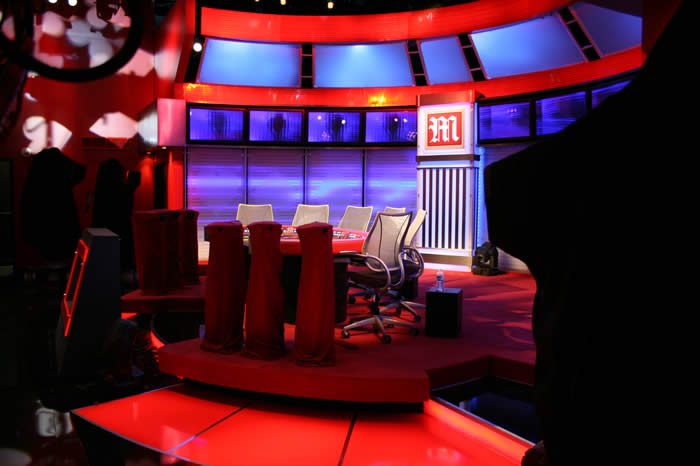

On set 6 robos, 6 hole card cams, 3 peds, 1 jib, a dealer cam, 2 mini-robos, a reverse set cam, a spy cam and a flop cam cover the action. 12 -- 42" plasma monitors are on set as well as a large Versa Tube wall behind the players.

NEP Supershooters affectionately call the setup SS Pokerdome. Equipment includes a Kalypso, a DVE, 4 Fast Forwards, 2 digicarts, 24 channels of EVS, an X-file, a Duet, 6 DPS475/575's, 16 channels of color correction, 4 55x9.5's, 3 10x4.8's, a 9x5.2, 4 hard cams, 4 handhelds, 4 Vinten Peds, and a lot more stuff not listed here.

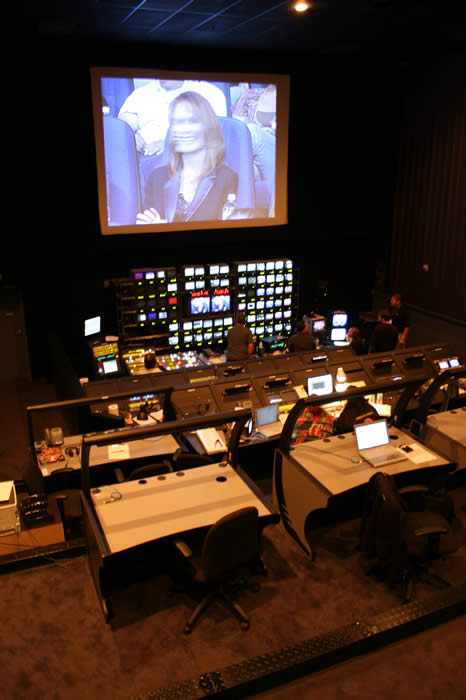

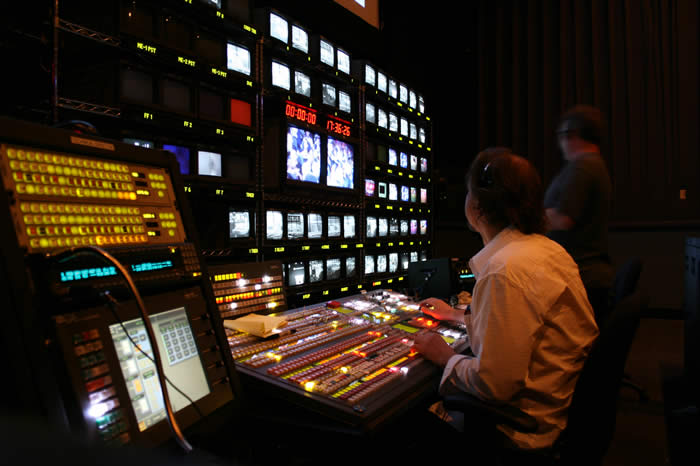

The master control room.

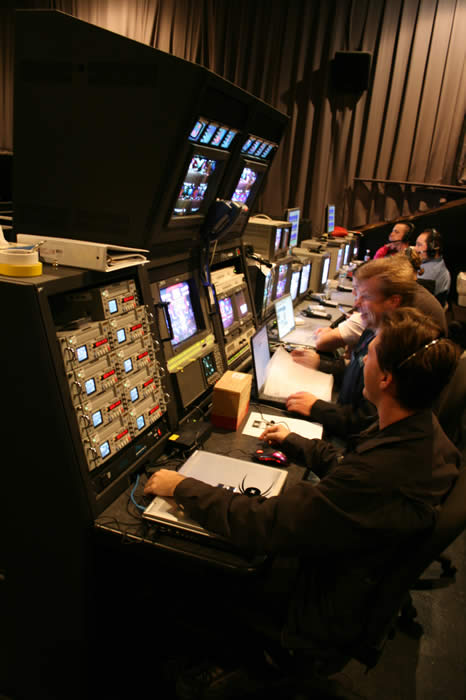

The POV control area.

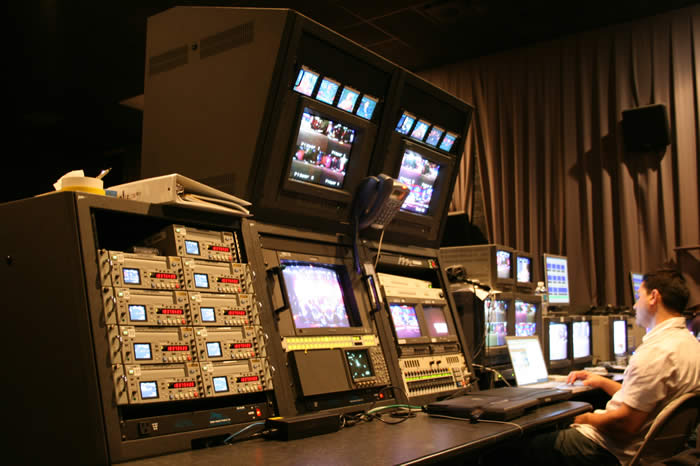

The POV control area includes 9 Sony DSR-45 iso record decks, a router with a hi-res monitor, waveform/vectorscope, quad splits, iso monitors and comms.

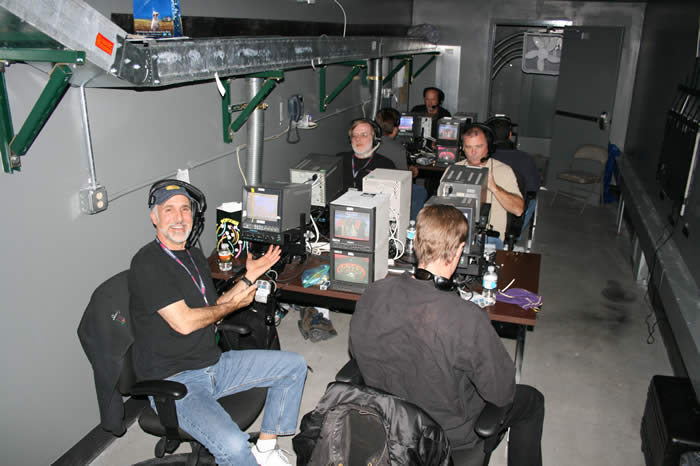

7 operators control the 8 robos on set. Operators use pan arm controllers.

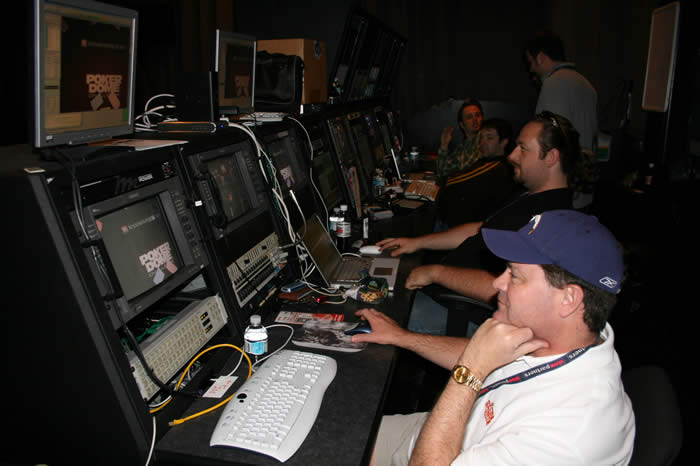

PVI controls the virtual logos on the table. Different logos are needed for the US feed and the international feed.

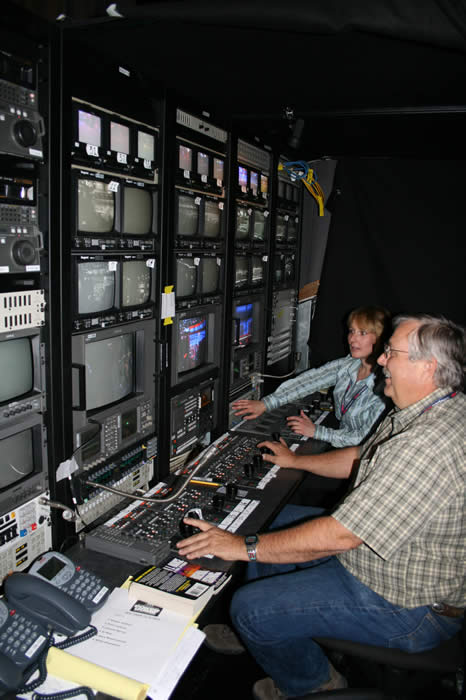

Video controls 18 of the cameras which utilize RCP750's (in back).

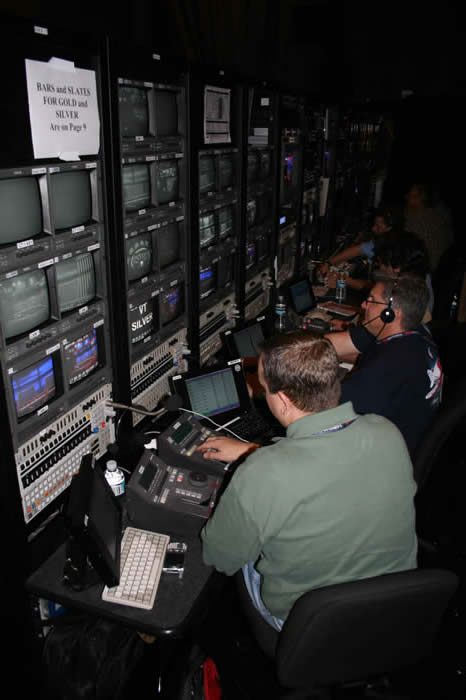

24 channels of EVS iso everything.

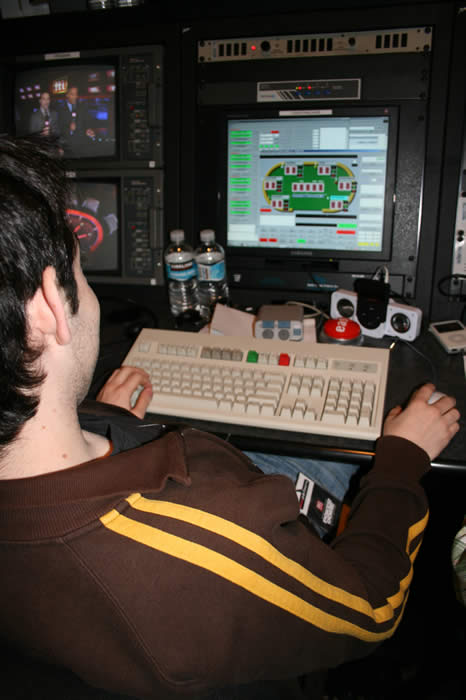

CardTracker uses RFID tags in the cards to instantly identify each of the players cards even if they don't peek at them. The heart rate monitors are also processed by CardTracker system. The system incorporates a Duet which actively creates graphics from the data.
